Cloudian HyperStore アプライアンス版
0
容量によって選択するだけのシンプルな提供形態
プレコンフィグレーション・テストされたCloudian HyperStore が実装されたハードウェア(HW)アプライアンスは、容量・速度により最適モデルを選択するシンプルな提供形態です。
VMware Cloud Program Partner (VCPP) で Cloudian ソフトウェアを調達する場合に専用HWとして提供もします。（別途お問合せください）
ラインナップ
最少構成は、3ノード(RF3)となります。5ノード以上Erasure Coding (EC)構成を選択可能になります。 ※1筐体に2ノード搭載されているモデルでのEC構成は、ノード数5以上となる ノード数6（筐体数3）からとなります。
| 製品名 | シリーズ | Product Code | Physical Capacity/筐体 | 物理仕様 | Network Interface |
概要 | |
|---|---|---|---|---|---|---|---|
| HyperStore 1600 | HSA1600 | HSA-1610 | 120 | TB (10TB x 12Bay) | 1node/ 1筐体/1U |
10GBaseT 10/25GbE 40/100GbE 選択式 |
HW 仕様変更 2021/6月 |
| HSA-1612 | 144 | TB (12TB x 12Bay) | 1node/ 1筐体/1U |
||||
| HSA-1614 | 168 | TB (14TB x 12Bay) | 1node/ 1筐体/1U |
||||
| HyperStore 4100 | HSA4100 | HSA-4108 | 560 | TB (8TB x 70Bay) | 2node/ 1筐体/4U |
10/25GbE 40/100GbE 選択式 |
|
| HSA-4110 | 700 | TB (10TB x 70Bay) | 2node/ 1筐体/4U |
||||
| HSA-4112 | 840 | TB (12TB x 70Bay) | 2node/ 1筐体/4U |
||||
| HSA-4114 | 980 | TB (14TB x 70Bay) | 2node/ 1筐体/4U |
||||
| HyperStore Xtreme | HSX4516 | HSX-4516S | 1536 | TB (16TB x 96Bay) | 2node/ 1筐体/4U |
10GBaseT 10GbE 25GbE/40GbE 選択式 |
|
| HSX-4516G | 1536 | TB (16TB x 96Bay) | 2node/ 1筐体/4U |
||||
| HyperStore Flash1000 | HSF1000 | HSF-1008 | 76.8 | TB (7.68TB x 10Bay) | 1node/ 1筐体/1U |
10GBaseT 10/25GbE 40/100GbE 選択式 |
All Flash |
| HSF-1015 | 153.6 | TB (15.36TB x 10Bay) | 1node/ 1筐体/1U |
||||

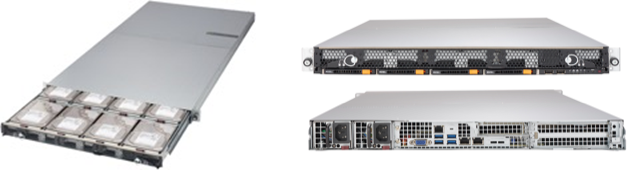

| Form Factor | 1U rack mount chassis |
|---|---|
| Metadata Drives | 2x U.2 7mm NVMe Flash |
| Metadata Drive Sizes | 1.92TB and 3.4TB options |
| Data Drives | 12x 3.5” SAS HDD (7200 RPM) |
| Data Drive Sizes | 10TB, 12TB, 14TB |
| Storage Capacity Raw | 120TB, 144TB, 168TB |
| Data Protection | Replication and erasure coding via storage policies |
| Redundancy | Hot swappable disk drives; 2x hot swappable supplies; No single point of failure; Non-disruptive online software upgrades |
| CPU | 2x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T |
| Memory | 128GB |
| Network Interfaces* | 10GBaseT (RJ45), 10/25GbE SFP28, 40/100GbE QSFP28 |
| Monitoring/Management | CLI, GUI, API, IPMI, JMX |
| Power Supply | 800W Platinum, 1+1 redundancy 100-127/200-240Vac, 50-60Hz, 7.5A / 3.5A |
| Cooling | 2 systems fan modules |
| Thermal Rating(max) | 2730 BTU/hr |
| Dimensions(WxHxD) | 17.6” × 1.7” × 35.4” / 448mm × 43.2mm × 950mm |
| Weight | 65lbs (29.5kg) |
| IO Ports/Connectivity | 1x GbE RJ45 LAN Port (Dedicated IPMI Management port) 2x USB 3.0 ports; 1x VGA port; 1x Micro-USB (serial header port) |
| Operating Environment | Operating Temperature: 5℃ to 35℃ (～41℉ ～ 95℉) Non-operating Temperature: -40℃ to 70℃ (-40℉ to 158℉) Operating Relative Humidity: 20% to 85% RH (non-condensing) Non-operating Relative Humidity: 10% to 95% RH (non-condensing) |
| *SFP トランシーバーとネットワークケーブルは含まれていません。 注：サプライチェーン上の問題が発生した場合は、同等のスペック代替サーバーモデルで代用することができます。 |
|
| Form Factor | 1U rack mount chassis |
|---|---|
| Metadata Drives | 2x U.2 15mm NVMe Flash |
| Metadata Drive Sizes | 3.84TB and 7.68TB options |
| Data Drives | 10x U.2 15mm NVMe Flash |
| Drive Sizes | 7.68TB and 15.36TB options |
| Storage Capacity Raw | 76.8TB or 153.6TB |
| Data Protection | Replication and erasure coding via storage policies |
| Redundancy | Hot-swappable disk drives 4x hot-swappable power supplies No single point of failure Non-disruptive online software upgrades |
| CPU | 2x Intel Xeon Gold 6230R 2.1G, 35.75M Cache, 26C/52T |
| Memory | 256GB |
| Network Interfaces* | 2x 10GBase-T (built-in and available as data ports) Additional network card options include up to 2x dual-port 10/25GbE NIC, or 1x dual-port 10/25GbE and 1x dual-port 40/100GbE NIC |
| Monitoring/Management | CLI, GUI, API, IPMI, JMX |
| Power Supply | 1200W Titanium PSU, 1+1 Redundancy, 100-200V AC |
| Cooling | 8 heavy-duty fans w/ optimal fan speed control |
| Thermal Rating | 2700 BTU/hr (max) |
| Dimensions (W x H x D) | 17.2″ x 1.7″ x 29.1″ / 437mm x 43mm x 739mm |
| Weight | 54 lbs (24.5 kg) |
| IO Ports | 2x 10GBase-T RJ45 LAN Ports (built-in) 1x RJ45 LAN Port (Dedicated IPMI Management port) 2x USB 3.0 ports 1x VGA port 1x serial header port |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| *SFP トランシーバーとネットワークケーブルは含まれていません。 注：サプライチェーン上の問題が発生した場合は、同等のスペック代替サーバーモデルで代用することができます。 |
|

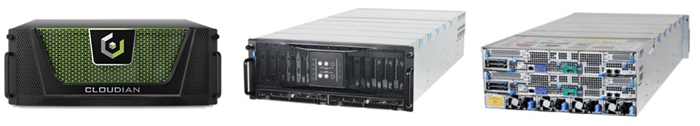

| Form Factor | 2 nodes in a 4U rack mount chassis |
|---|---|
| Metadata Drives | 4x U.2 7mm NVMe Flash (2x per node) |
| Metadata Drive Sizes | 1.92TB and 3.84TB options |
| Data Drives | 70x 3.5” SAS HDD (35x per node, 7200 RPM) |
| Drive Sizes | 8TB, 10TB, 12TB, 14TB |
| Storage Capacity Raw | 560TB, 700TB, 840TB, 980TB |
| Data Protection | Replication and erasure coding via storage policies |
| Redundancy | Hot swappable disk drives; 4x hot swappable power supplies; No single point of failure; Non-disruptive online software upgrades |
| CPU | 4x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T (2x per node) |
| Memory | 256GB (128GB per node) |
| Network Interfaces | up to 4x dual port 10/25GbE NIC (2x per node), or 2x dual port 10/25GbE NIC and 2x dual port 40/100GbE NIC (1x 10/25GbE and 1x 40/100GbE NIC per node) |
| Monitoring/Management | CLI, GUI, API, IPMI, JMX |
| Power Supply | 1200W Platinum (nameplate for single PSU) 2+2 redundancy; 100-120/200-240Vac, 50/60Hz, 14/8A |
| Cooling | 5x (4×8056 + 1×6056) dual rotor fan modules (9+1 redundancy) |
| Thermal Rating (max) | 7882 BTU/hr (3941 BTU/hr per node) |
| Dimensions | 17.6″ x 6.9″ x 35.9″ 447mm x 175.3mm x 912.2mm |
| Weight | 109.02 lbs (49.45kg) without drives; 286.6 lbs (130kg max) fully populated |
| IO Ports/Connectivity | 1x GbE RJ45 LAN Port (Dedicated IPMI 2.0 Management port) 2x USB 3.0 ports; 1x VGA port; 1x RS232 (serial header port) |
| Operating Environment | Operating Temperature: 5°C to 35°C (~41°F ~ 95°F) Non-operating Temperature: -40°C to 65°C (-40°F to 149°F) Operating Relative Humidity: 20% to 85% RH (non-condensing) Non-operating Relative Humidity: 40% to 90% RH (non-condensing) |
| *SFP トランシーバーとネットワークケーブルは含まれていません。 | |
| Form Factor | 2 nodes in a 4U rack mount chassis |
|---|---|
| Metadata Drives | 4x 1.92TB SSD (2 per node) |
| Data Drives | 96x SAS HDD (48 per node, 7200RPM) |
| Drive Sizes | 16TB |
| Storage Capacity Raw | 1536TB |
| Data Protection | Replication and erasure coding via storage policies |
| Redundancy | Hot-swappable disk drives 4x hot-swappable power supplies No single point of failure Non-disruptive online software upgrades |
| CPU | 4x Intel Xeon Silver 4110, 8 core (2 per node) |
| Memory | 256GB (128GB per node) |
| Network Interfaces | 8x 10GbE (10BaseT or SFP+, 4 per node); 25GbE/40GbE options |
| Monitoring/Management | CLI, GUI, API, IPMI, JMX |
| Power Supply | 2x 3200W PSU, 200-240V AC |
| Cooling | (4) 8056 + (1) 6056 dual-rotor fans |
| Thermal Rating | 3794 BTU/hr (max) |
| Dimensions (W x H x D) | 17.4″ x 6.95″ x 44.8″ / 441mm x 176.4mm x 1139mm |
| Weight | 330 lbs / 150Kg |
| IO Ports | Rear per node: (1) USB 3.0 port; (1) HDMI port; (1) GbE RJ45 management |
| Operating Environment | Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 10% to 85%RH Non-operating relative humidity: 5% to 90%RH |
| *SFP トランシーバーとネットワークケーブルは含まれていません。 最新情報はCloudian公式サイト をご確認ください。 |
|
